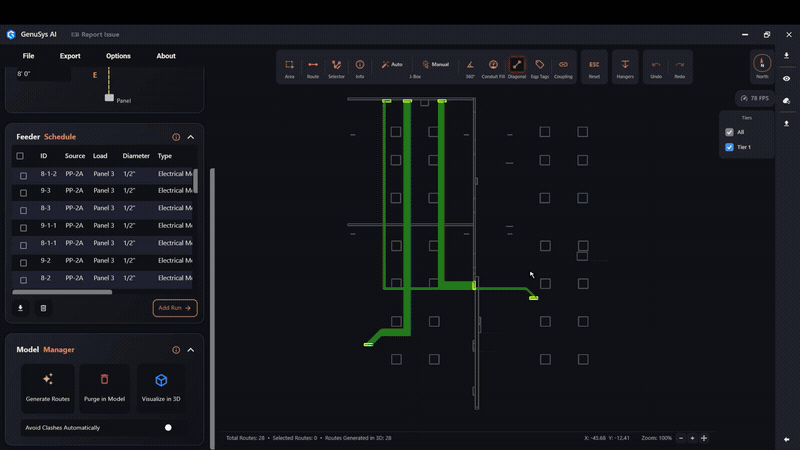

Purge in Model

Purge in Model removes the generated 3D conduits for the routes you’ve selected — handy when you want to regenerate. Your 2D layout stays exactly as it is, so you can generate again without redrawing.

• Select the routes you want to purge first — ABR asks you to before it does anything.
• It confirms “Are you sure?” before deleting.
• If any selected routes have hangers, it asks whether to delete the hangers too, or keep them.
• If a temporary 3D view is open, it offers to close it and proceed.
