Export to Excel

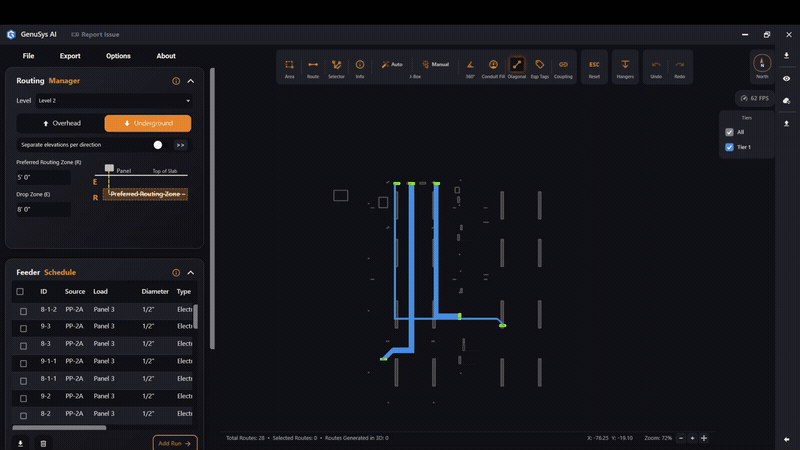

Export → Excel produces the branch home-run schedule as a spreadsheet (.xlsx or .csv). For every run it lists the Branch ID, From, To, circuit numbers, conduit type and size, amps, 2D and 3D lengths, total bend, fittings and each individual bend angle. A second sheet breaks the circuits down by amp.

Each run is also marked Accuracy: Actual once it has a real 3D path, or Estimated while it’s still a 2D plan.
