Feeder Automation
Conduit Stacking

Opening Conduit Stacking

Draw a Preferred Area, then right-click it and choose Conduit Stacking.

Last updated July 19, 2026

Conduit Stacking works on a Preferred Area, so first you mark one:

  1. Click Area in the toolbar and draw a rectangle around the conduits you want to stack. ABR creates a preferred area (for example PA-5580).
  2. Right-click the preferred area and choose Conduit Stacking from the menu.

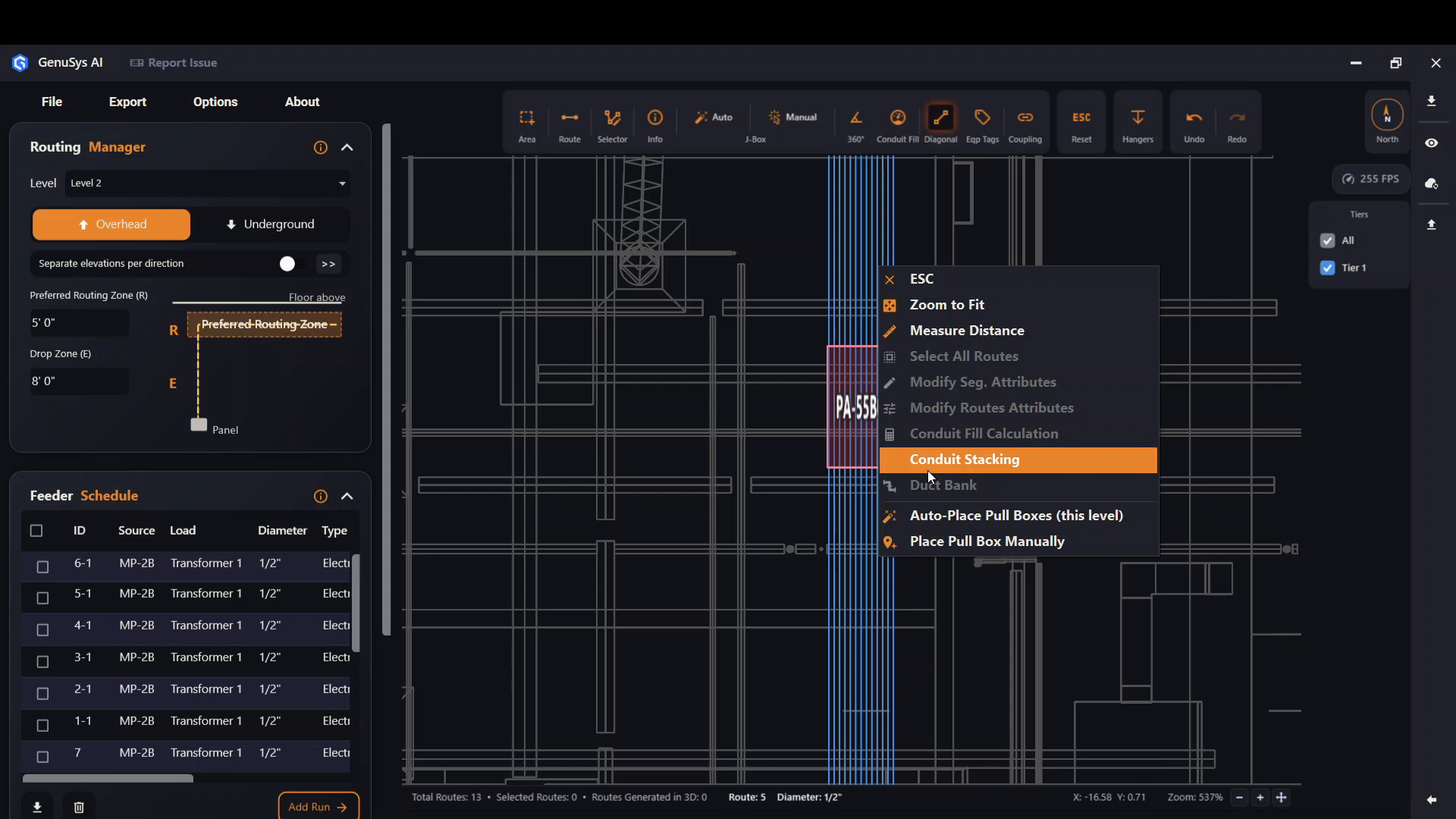

Right-click a preferred area and choose Conduit Stacking

The same right-click menu also has other per-area actions (Duct Bank, Conduit Fill, pull boxes) — Conduit Stacking is the one that opens the stacking window.
