Configure Circuits
The Panel Data window — review each panel's HR boxes, move circuits between them, and set the conduit for each.
Last updated July 20, 2026

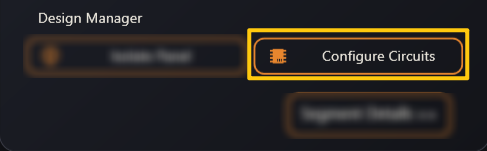

Configure Circuits opens the Panel Data — HR boxes window: the place where you decide which circuits share which home-run box, and what conduit each box gets.
The window
It has three columns:
- Panels — every panel in the layout, with a Search panels… box. Pick one and the viewer isolates it automatically so you can see exactly what you’re editing.
- CKT Numbers — the circuit numbers available on that panel. Use the › and ‹ buttons to move circuits into and out of a home-run box.
- HRBoxes — the boxes for that panel, named after the circuits they carry
(for example
MP-A-1-c1-1: 1,3,5,MP-A-1-c1-1: 2,4,6,MP-A-1-c1-1: 7,9,11). Each one has its own:- Family — the conduit type, e.g. Rigid Nonmetallic Conduit (RNC Sch 40)
- Diameter — e.g.
3/4" - Usage — e.g.
BRANCH - Box Size — e.g.
10" x 10" x 6"
These start from the values in Default Settings → Branch Defaults — this window is where you override them per box.
The buttons
- + / − — add or remove a home-run box for the selected panel.
- Panel Schedule — open the panel’s schedule for reference.
- Process — apply your changes; the viewer redraws with the new grouping.
If you’re already in Isolate Panel mode, Configure Circuits works on the panels you’ve isolated; otherwise it loads every panel in the layout.
